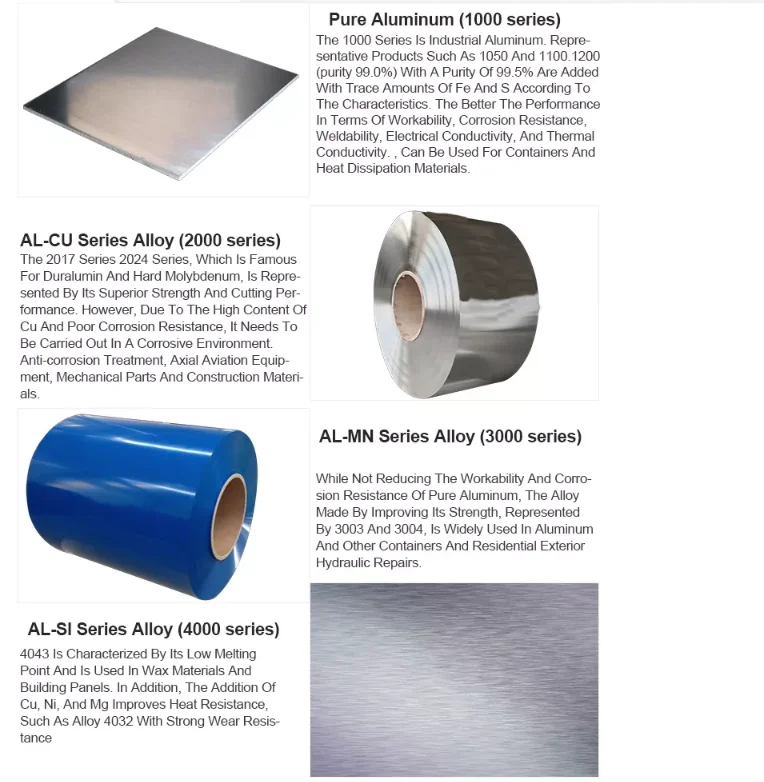

Aluminum Grade

Features of the 1 series

It belongs to a series containing the most aluminum.Contains more than 99.00% aluminum, good electrical conductivity, good corrosion resistance, good welding performance, low strength.Used in conventional industry.

Features of the 3 series

It is mainly composed of manganese.The content is between 1.0% and 1.5%, used for industries and products with high requirements for rust prevention.Good corrosion resistance, good weldability and good plasticity.

Features of the 5 series

It belongs to the series of commonly used alloy aluminum plate,the main element is magnesium.The main characteristics are low density,high tensile strength,high elongation,good fatigue strength,but can not be strengthened by heat treatment. It is also widely used in conventional industry.

Features of the 6 series

Contains mainly magnesium and silicon,suitable for corrosion resistance,oxidation demanding applications.

Specifications

Specification

1. Thickness: 1.0-4.0mm

2. Width: 50-2300mm

3. Weight: 2.0-2.5 tons per pallet

4. Length: 1000-6000mm

5. Grades: 1000, 2000, 3000, 4000, 5000, 6000series

a) 1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc.

b) 2000 Series: 2014, 2024, etc.

c) 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc.

d) 4000 Series: 4045, 4047, 4343, etc.

e) 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5454, 5754, 5A06, etc.

f) 6000 Series: 6061, 6063, 6082, 6A02, etc.

Product Description

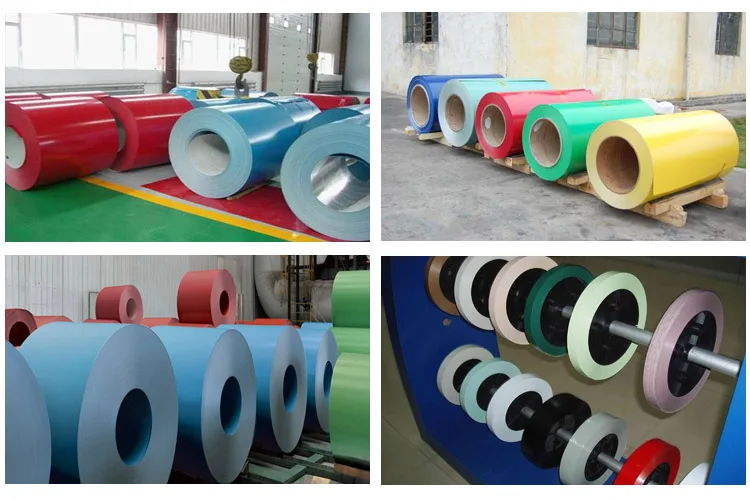

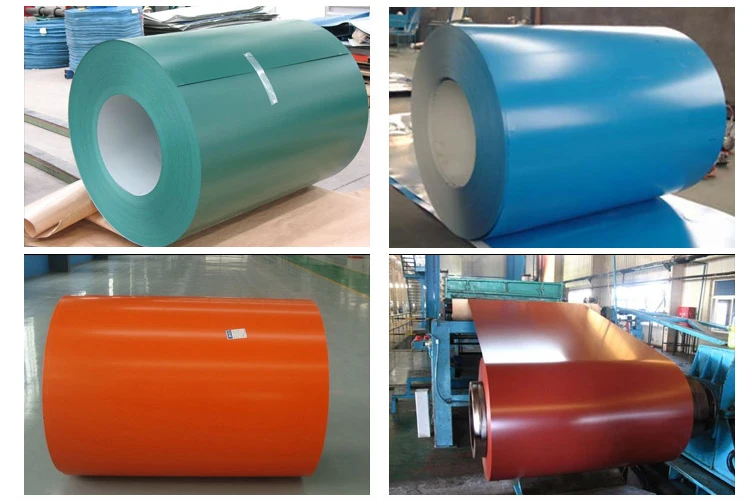

Aluminum Color Coated Coils

1) Alloy: 1050, 1060, 1100, 3003, 3004, 3005, 3105, 5005, 5052, 5083, 5754

2) Temper: Various status

3) Thickness: 1.0-4.0mm

4) Width: 50-2300mm

5) Weight: 2.0-2.5 tons per pallet

6) Length: 1000-6000mm

7) Frontispiece Painting: PVDF & PE (Brand: PPG)

8) Frontispiece guarantee: Coating guarantee for 20 years.

9) The Thickness of the Baffle Paint: The thickness of paint coating is 30u.

10) Face Slab For Film: Adopt PVC film, thickness for standard is 60u (can be negotiated if the client need higher thickness)

11) Color Requirements: Could according to the color board of color number of the client offer.

12) Gloss Requirements: Could do it from 20% to 60% according to the gloss request of the client

13) Dimensions and weight can be produced according to clients' specifications.

14) Applications: construction, decoration, air-conditioner and radiators,package

Details Images

Packing & Delivery
